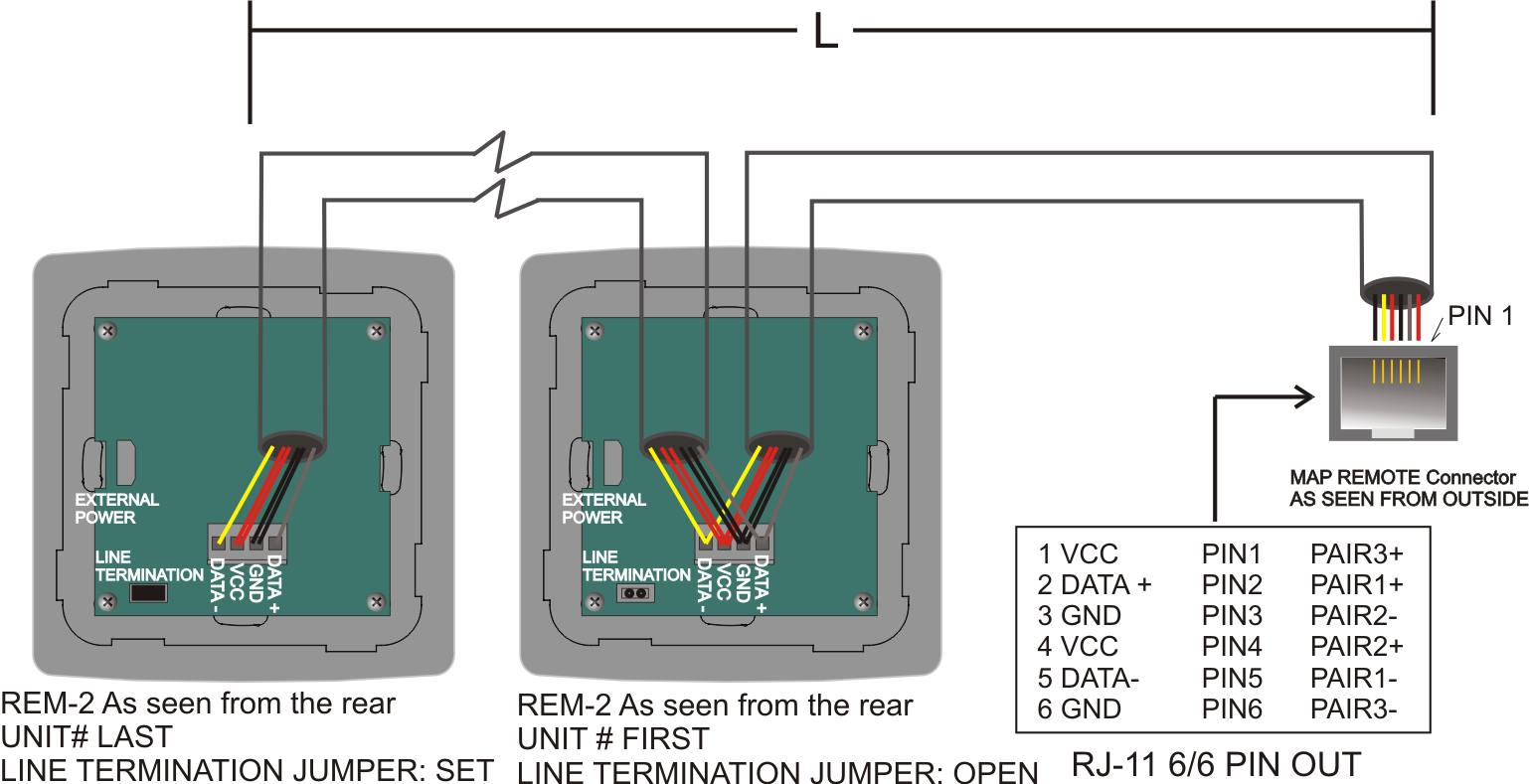

Cabling is done with 3 pairs of cat5 or equivalent cabling (six wires total) as shown in the figure.
The last unit should be finished. Simply close the supplied jumper that by default is placed but open.
Given the losses of the cables, a maximum cable length is established according to the table:
|
Nº OF REMOTES |
MAX CABLE LENGTH [m/(ft)] from first to last |
|---|---|
|
1 |
400/(1300) |
|
2 |
200/(650) |
|
3 to 4 |
100/(325) |
|
5 to 8 |
50/(165) |
Cable cat5, 0.2mm2, AWG24
