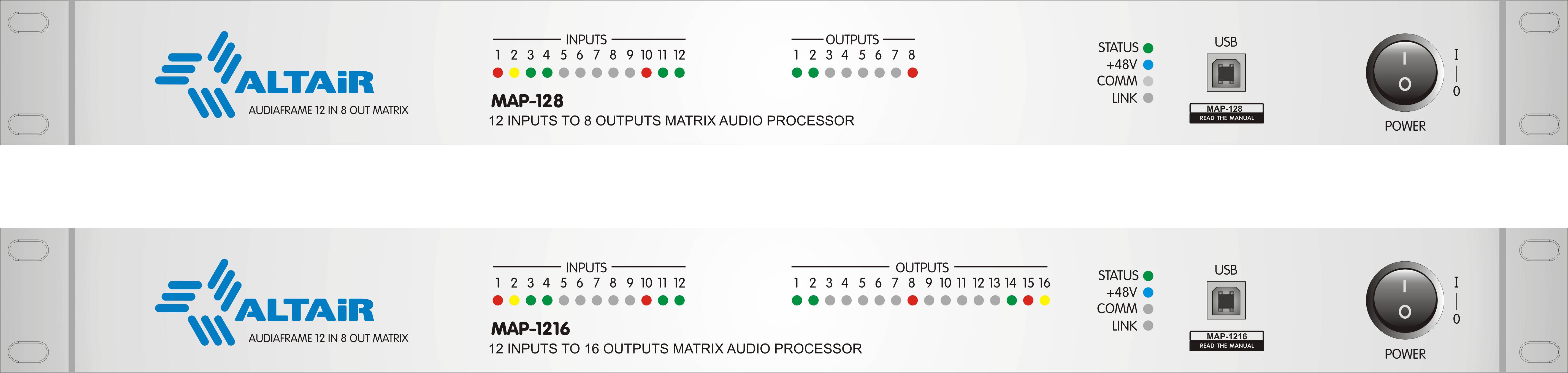

Below are showcased the Front Panels of the MAP128 and MAP1216 models respectively:
|
| |||||||
|---|---|---|---|---|---|---|---|
|
|
|
|
|
| |||
|
LOGO ALTAIR LEDS / OPERATING MODE |
INPUT/OUTPUT ACTIVITY LEDS |
PROCESSOR ACTIVITY LEDS |
USB CONNECTION |

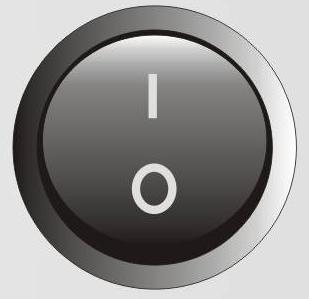

POWER-ON SWITCH | |||
|---|---|---|---|---|---|---|---|
|
Master/Stand Alone |
BLUE |
Signal presence |
GREEN |
Status Ok |
GREEN |
|
|
|
Slave |
GREEN |
0 dB |
ORANGE |
Status Error |
RED |
||
|
|
|
Clip Point |
RED |
+48 Phantom activity |
BLUE |
||
|
|
|
Active Phantom at the input |
BLUE Burst |
Comms in progress |
COMM |
||
|
|
|
|
|
Units linked |
LINK |
||
