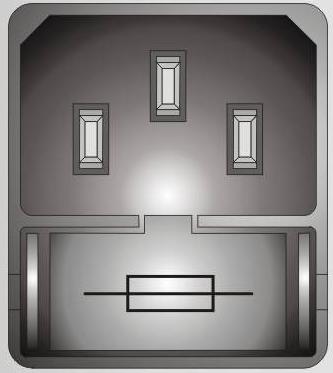

MAINS CONNECTOR, IEC |
ETHERNET Connection |

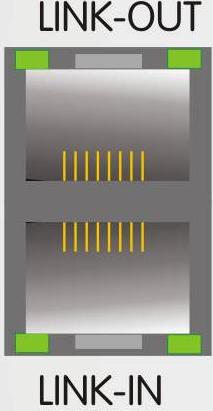

LINK CONNECTIONS |
REMOTES CONNECTION |

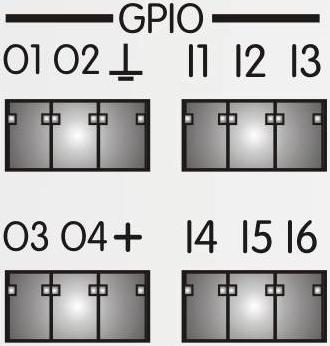

GPIO CONNECTIONS |
BALANCED ANALOG AUDIO INPUTS/OUTPUTS |
|
FUSE Box |
RJ-45 Connector |
RJ-45 / RJ-45 Connectors |
RJ-11 6/4 Connector |
Phoenix ® (3.5mm) |
Phoenix ® (3.5mm) |
